Case study - Bristan


Haydndesign was tasked with managing the transition from 2D to 3D Pro/E, at Bristan's commercial manufacturing site.

  • Our engineers worked on site liaising with the current in-house engineering team to create a comprehensive BOM for around 200 products. This included thermostatic shower valves, taps and kits with up to 100 individual parts.

  • All detail drawings, standards, company policies, drawing formats, material specifications and technical knowledge were collated and 3D designs were created.

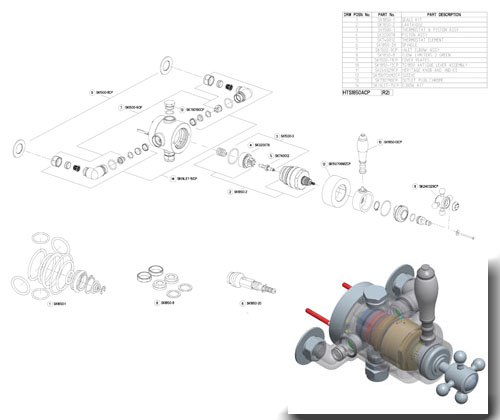

  • Full drawing packages where generated for each product including assembly drawings, spare part drawings, therefore improving the quality of the documentation available both for the manufacturer and the customer.
